How to install the plasterboard with keel(for Ceiling)

Installing plasterboard (also known as drywall) with a keel (or metal framing) is a common method for creating walls or ceilings. The keel acts as a support frame for attaching the plasterboard. Here’s a step-by-step guide on how to do it:

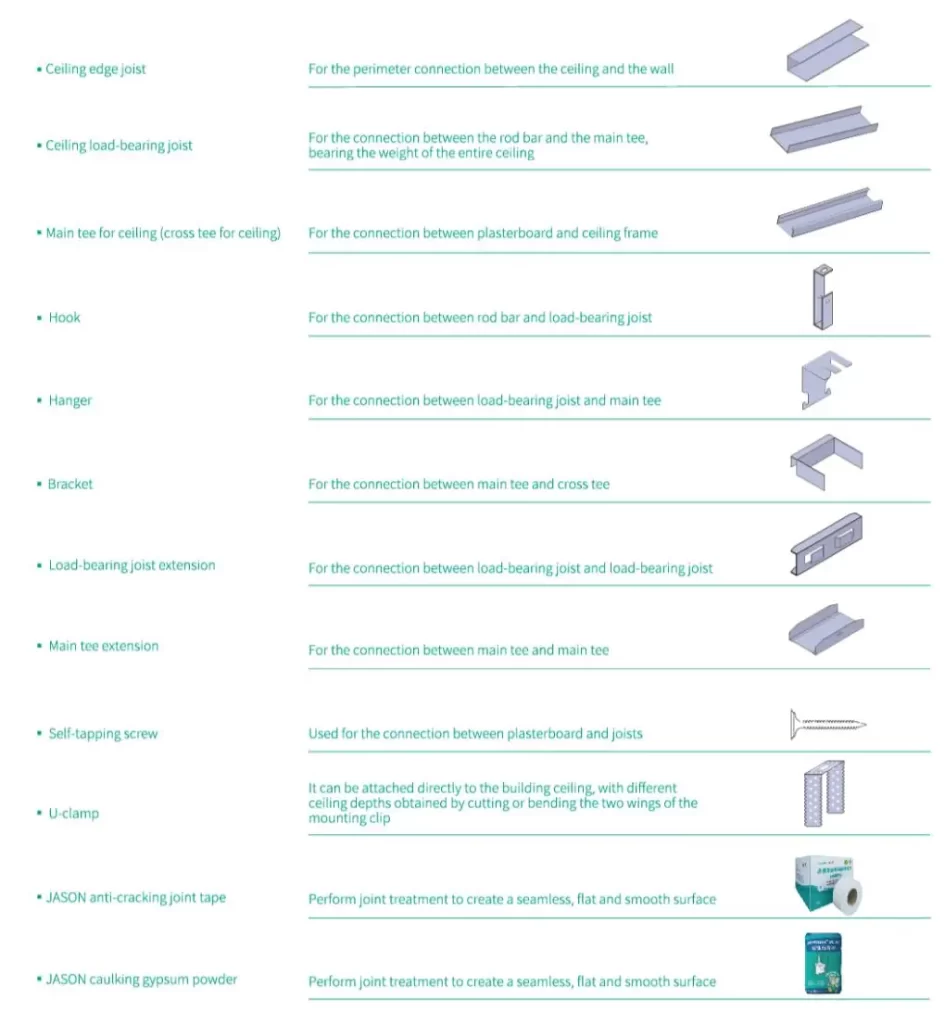

Materials Needed:

  • Plasterboard (drywall)
  • Metal keel (steel studs or track system)
  • Screws (drywall screws or self-tapping screws for metal framing)
  • Drill and screwdriver
  • Measuring tape
  • Level
  • Saw (if you need to cut plasterboard or metal)
  • Metal-cutting shears (for cutting keel)
  • Screw gun or power drill
  • Chalk line or pencil for marking
  • Plumb bob or laser level (for vertical alignment)

Steps:

1. Prepare the Area:

  • Clear the area where you’ll be installing the plasterboard.
  • Measure the space to determine how much plasterboard and keel you’ll need.

2. Install the Keel (Metal Framing):

  • Start by laying out the keel structure on the floor. This will typically consist of metal studs (vertical framing members) and track pieces (horizontal members).
  • Cut and fit the top and bottom tracks: The top track will be installed along the ceiling, and the bottom track along the floor. Use a level to make sure these tracks are straight and aligned.
  • Install the vertical studs: These are placed every 16 or 24 inches along the track. The studs are usually attached by sliding them into the top and bottom tracks and then securing them with screws.
  • Make sure the studs are plumb (vertical alignment), which you can check with a level or plumb bob.

3. Prepare the Plasterboard:

  • Measure and cut the plasterboard to fit between the metal studs. Use a drywall saw or utility knife to cut the plasterboard to size.
  • If you need to cut around electrical outlets or other fixtures, measure carefully and make the necessary cuts.

4. Attach the Plasterboard to the Keel:

  • Starting from one end, place the plasterboard sheets against the metal studs. Ensure the edges align with the studs.
  • Use drywall screws to attach the plasterboard to the metal studs. Place screws every 12-16 inches along the studs, making sure they’re slightly recessed below the surface of the plasterboard (don’t overdrive them).
  • For ceiling installation, it’s a good idea to have a second person to help lift the plasterboard into place.

5. Securing the Plasterboard:

  • Continue attaching the plasterboard across the entire wall or ceiling, ensuring each sheet is securely fastened to the metal framing.
  • If necessary, leave small gaps (1/8 to 1/4 inch) between the plasterboard sheets to allow for expansion.

6. Finishing:

  • Once all the plasterboard is in place, you can finish the seams by applying joint compound and taping the joints. Smooth the compound, allow it to dry, and then sand it down for a smooth finish.
  • If you’re installing it on a ceiling, you may need to add additional support while the compound sets.

7. Final Touches:

  • After the drywall compound has dried and been sanded, you can apply paint or any finishing touches.

Tips:

  • Always wear safety equipment (gloves, goggles, etc.) when working with metal framing and cutting plasterboard.
  • Make sure you are using the right size screws for the thickness of both the plasterboard and the metal framing.
  • If working on a ceiling, consider using drywall lifts or having an extra person to hold the plasterboard in place.
